Home Watering Automatic Watering Drippers Pinch Drip™ Pressure Compensating Dripper

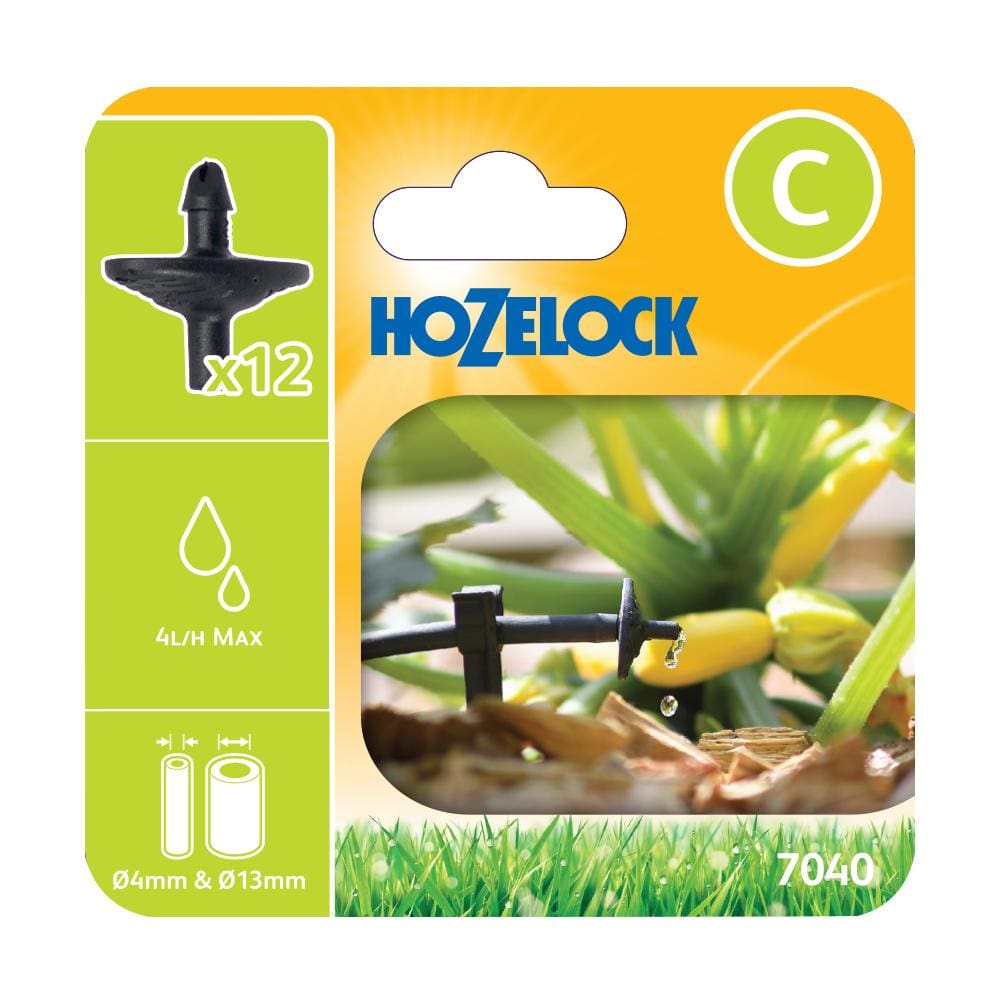

Pinch Drip™ Pressure Compensating Dripper

Pinch Drip™ Pressure Compensating Dripper

Key Benefits Include:

  • Pressure compensating dripper with a turbulent flow path
  • Use end-of-Line on ø4mm micro tube
  • Can be used In-Line on ø13mm micro supply tube
  • Maintains a constant and uniform drip rate of 4 lph
  • Available in packs of 12
Water Delivery

Dripper

Maximum Flow Rate (LPH)

4LPH

Compatibility

13mm, 4mm

Watering Coverage

Drip

Pack Qty

x 12, x 24

Guarantee Period

2 Years

SKU: 7040 0012, 7040 0024 Categories: Automatic Watering, Drippers, Watering
Share:
  • Full Details
Full Details

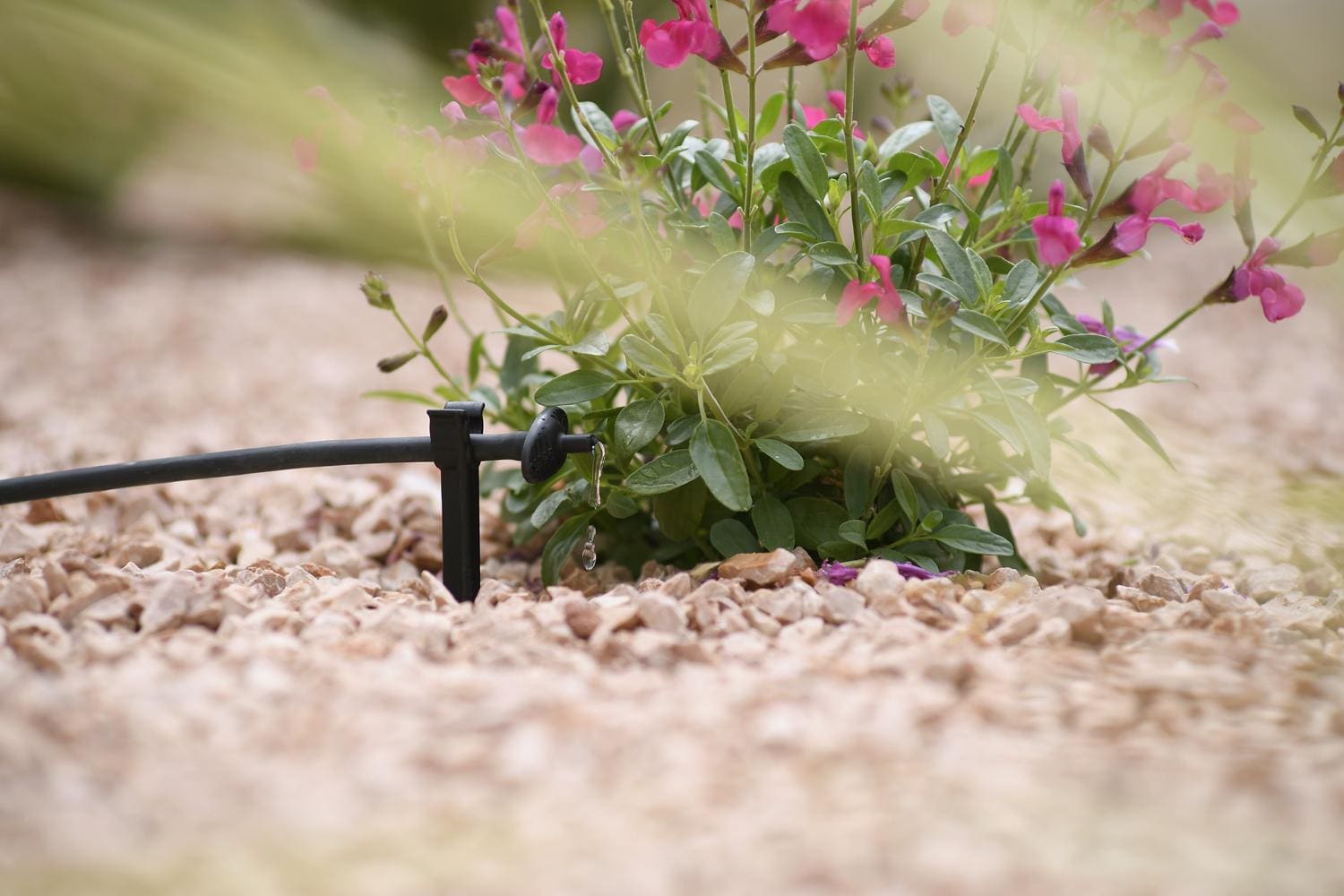

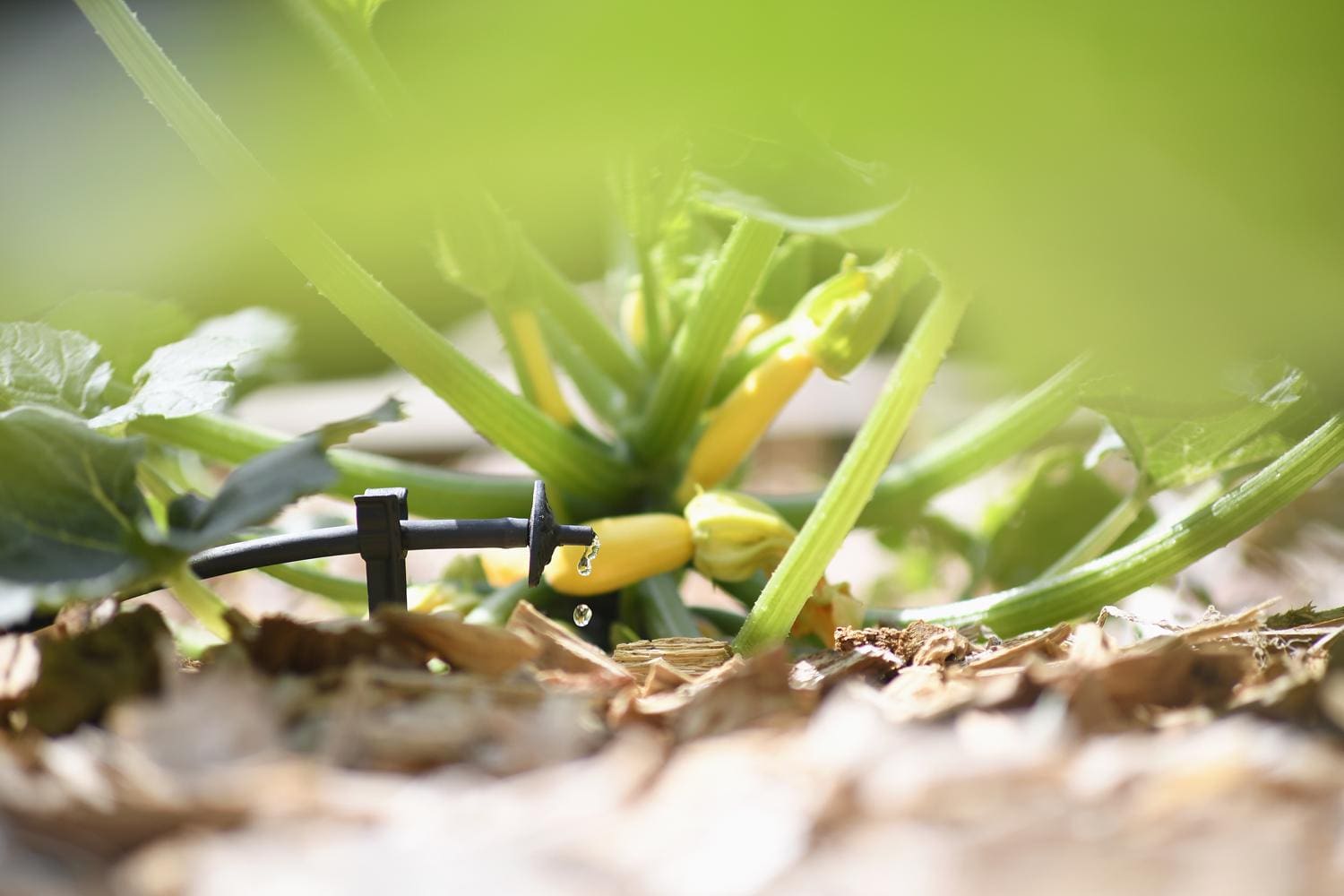

Ideal for use in pots, containers, on patios and in landscapes This high-performance pressure compensating dripper includes a sealed turbulent flow path to maintain a constant and uniform drip rate of 4 lph.

The in-built self-flushing, turbulent flow path delivers higher resistance to clogging where water conditions may be a problem.

The Pinch Drip emitter lays flat on the mainline tubing so that it’s not easily damaged and is easy to install. Made from long life UV Stabilized materials.

Available in packs of 12.

7040 1

INSTRUCTIONS

7040 1

COMPARISON

In-Line Pressure Compensating Dripper4 LPH End of line pressure compensating dripperPinch Drip™ Pressure Compensating DripperIn-Line Pressure Compensating Dripper SpikesEnd-of-Line Pressure Compensating Dripper Spikes
278427857040 27042 17043 1
InstallationIn-line - ø4mm In-line– ø13mm
End of line – ø4mm
In-line– ø13mm
End of line – ø4mm
In-line– ø4mm End of line – ø4mm
Adjustable flow rateNoNoNoYesNo
Flow rate 4 litres/hour (1.5 bar) 4 litres/hour (1.5 bar) 4 litres/hour (1.5 bar) 0 – 40 L/h (1.5 bar) 4 litres/hour (1.5 bar)
Pressure compensation YesYesYesYesYes

GUIDE TO AUTOMATIC WATERING

Download Guide

ABCD Guide To Automatic Watering
